Car Lifts and Vehicle Lifting Systems
A car lift does one simple thing: it takes the car from one floor to another. Up or down, from street level to the underground garage, from the courtyard to the parking space below. No ramps, no slopes, none of the manoeuvring that becomes a serious problem in winter on ice.
We manufacture four types, each designed for a different context. There is one with a reduced pit for those who cannot dig too deep, one that reaches eleven metres of stroke for buildings with multiple basement floors, and a double one for significant level differences. All can be customised in size, and all can be finished with the surrounding paving to blend in when not in use.
One thing we are often asked: yes, you can stay in the car during lifting. The Aries is TÜV SÜD certified for this — meaning an independent German body has verified that the system is safe even with the driver inside.
Car lift with structural roof cover
Its fully hot-dip galvanized load-bearing structure makes it suitable for installation both indoors and outdoors.
The structural roof cover can be paved with the same material as the surrounding context, and it is possible to integrate it with grass or premium finishes to make it 'invisible'.
When the car lift is closed, it is possible to park on the roof, gaining an additional parking space and saving space without ramps.
Versions:
Aries 3: lighter version, without operator on board, ideal when a compact and economical solution is required.
Aries 5: higher load capacity, with operator on board, suitable for residential and commercial use.
Informations
Aries Variants Table
The difference between the variants lies in their lifting capacity and whether it is possible to remain on board during the lifting operation.
Aries in action
Wormer - Netherlands
Bergen - Netherlands
Brescia - Italy
Brunico - Italy

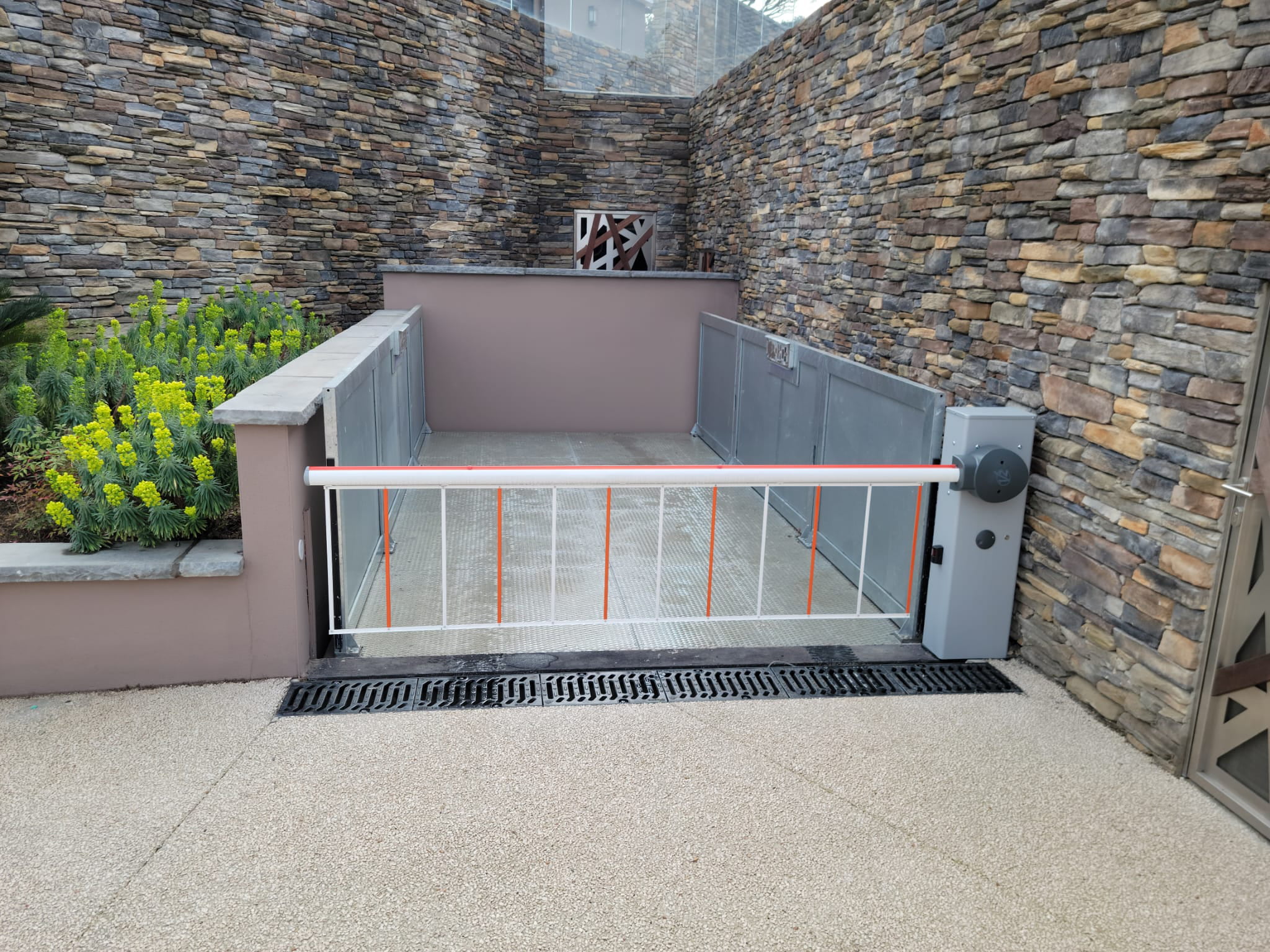

The most compact scissor lift car lift in the range
The Vela range represents the most essential and functional solution in the scissor lift car lift range. Designed for the vertical transport of vehicles between two levels, it stands out for its simple construction combined with high operational reliability.
Without a roof cover, the Vela range is particularly suitable for indoor installation, such as private garages or automated parking silos, but — thanks to its fully hot-dip galvanized structure, which ensures weather resistance and long service life — it can also be installed outdoors.
Compact, efficient and easy to integrate, Vela is the ideal choice for contexts requiring limited dimensions and reliable performance without compromising on quality. Its one-piece frame ensures minimal assembly times with simple and fast installation.
Informations
Vela Variants Table
The Light version is structurally more compact: it takes up less space widthways, has two cylinders instead of three, and has a lower load capacity. It is the ideal choice when space is limited but the height difference to be covered remains the same. Both versions are available with (c.c.) or without (s.c.) a driver on board.
Vela in action
Amsterdam - Netherland
The versatile and reliable car lift
Sagitta car lifts are vertical column lifting systems, designed to move vehicles between multiple floors even with high stroke and limited shaft dimensions. The system, based on one or more load-bearing columns anchored to a reinforced concrete wall, guarantees solidity, stability and safety during operation. The absence of scissor mechanisms allows for a reduced footprint and greater design flexibility.
The hot-dip galvanized structure ensures weather resistance and durability even for outdoor installations. Sagitta is the ideal choice for those who need high performance in limited spaces without sacrificing safety and efficiency. It is designed to guarantee maximum functionality in residential and commercial spaces. Smooth and safe movement, with technologies designed for intensive daily use.
Informations
Sagitta variant table
The variants differ in terms of the number of columns and their configuration. The standard Sagitta has two columns on both sides and is suitable for loads of up to 3,000 kg; the Sagitta S has four columns and can handle loads of up to 5,000 kg with longer strokes. The Sagitta Laterale has columns on one side only.
Double scissor lift for large level differences
Gemini car lifts represent the technical evolution of the Aries models, maintaining their structural robustness whilst integrating a double scissor lift system that achieves greater strokes, making them ideal for buildings with more pronounced level differences or multiple basement floors.
The structure is fully hot-dip galvanized, which guarantees optimal corrosion resistance and allows installation both indoors and outdoors. The Gemini range is available with or without a structural roof cover, for invisible integration at street level or open-top configuration when an upper enclosure is not required.
Reliability, versatility and operational safety make the Gemini range the ideal solution for complex contexts requiring high performance in terms of stroke and resistance.
Informations
Gemini Variant Table
The variants differ in terms of the number of cylinders, their capacity and whether they can carry a driver.
Projects completed around the world
From Chamonix to Kraków, from Lake Iseo to Rotterdam. At our factory in Guidizzolo, we design, manufacture and install our products all over the world, for customers and retailers. The same factory, different solutions every time.
-
Gemini S 5 Car Lift in Krakow: Underground Parking with Double Pantograph for a Private Villa
In this private home in Krakow, Poland, reaching the underground garage with a height difference of over six...
-
Special Orion-model Rotocover with Gemini in Milan
Impianto speciale a doppio pantografo in grado non solo di movimentare i veicoli per un dislivello di quasi...
-
Norma T1 Sliding Platform in Belgium: Three Platforms in a Row for Independent Vehicle Access
In this private garage in Belgium, the CMC Parklift Norma T1 sliding platform in the three-position inline configuration...
Where is it installed?
Private garages and condominium parking bays (the most frequent request: connecting street level to the underground car park). Villas and residences where a ramp would take up too much space or would be aesthetically unacceptable. Apartment blocks that need to provide access to underground garages without building slopes. Car dealerships, for moving vehicles between exhibition floors. Hotels in historic city centres where every square metre of parking counts.
Why choose us?
Siamo certificati TÜV SÜD, la certificazione che garantisce la sicurezza per l’utilizzo dell’impianto con conducente a bordo della vettura. Per il cliente finale questo certificato è una garanzia che snellisce le pratiche di messa in funzione dell’impianto.
Safety for use with a driver on board
It protects steel against corrosion.
For maximum mechanical strength.
Bespoke finishes and protective panels.
High performance and customisable
Covering the platform surface to ensure it blends in with the surrounding environment.
Our products are safe and built to last.
Advanced electronic solutions transform your installations into fully-fledged smart systems
Frequently asked questions
It depends. On the model, the stroke, the customisations, the installation site. A Pegasus (car stacker) and a Sagitta with eleven metres of stroke are two completely different projects. The only way to get a real figure is to send us your project measurements — the quote is free and we produce it within a few days.
Yes, always. From 560 mm for the Aries to 1,500 mm for the Sagitta. If there’s already a pit, we can adapt the system — we’ve done it plenty of times.
Yes. All models are available in a driver-on-board version. The Aries is TÜV SÜD-certified, which, in practice, greatly simplifies the administrative procedures required for commissioning.
It works just as well at the foot of Mont Blanc. Hot-dip galvanising protects steel from corrosion for decades. We have outdoor facilities in Switzerland, Scandinavia and France, exposed to the elements.
Yes. Artificial grass, stone, tiles, wood — whatever you like. When the car lift is flush with the ground and finished to match the surrounding floor, it blends in completely.
Very little. A regular check of the cylinders and limit switches, and lubrication of the guides. Any lift maintenance technician can do this; you don’t need a specialist.
